Camlog® Dental Implant Internal Titanium Premill Blank Abutment 14mm Engaging
Camlog®
* 3.3mm/ 3.8mm/ 4.3mm/ 5.0mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm

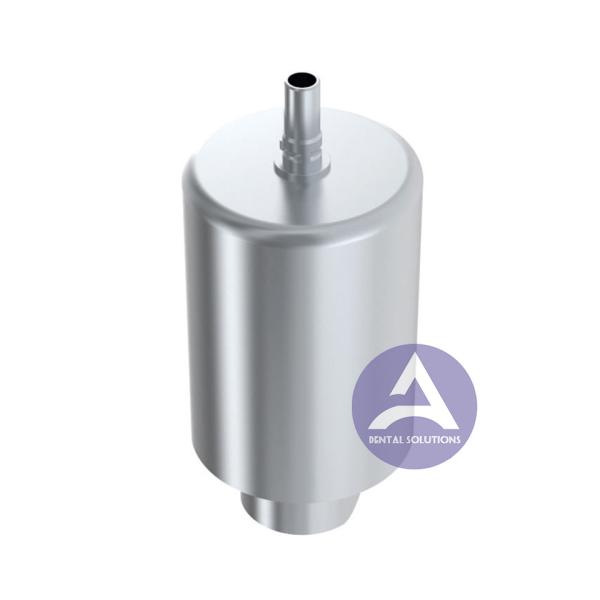

Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.
Approved by CE, ISO 9001, ISO 13485
* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.
Points of Camlog™ Dental Implant:
Fig. 2
Screw-Line™ implants are machined with a slightly tapered body geometry, outside thread pattern and a Promote® surface treatment. The Promote® surface is achieved through particle blasting and followed by acid etching. Implants are available with a 0.4mm (Fig.2, left) and a 1.4mm (Fig.2, right) machined collar. A progressively deeper cutting surface extends about two thirds of the implant from the apical toward the implant/abutment interface with the more aggressive portion at the apical of the implant.
Fig. 3
Five implant platform diameters (Fig.3, implant/abutment interface diameter) of 3.3, 3.8, 4.3, 5.0, 6.0mm in four lengths of 9, 11, 13 and 16mm are produced for this implant system with the exception of 3.3mm diameter implants which are not available as a 9mm length implant. Each platform diameter is color coded for platform diameter identification gray (3.3), yellow (3.8), red (4.3), blue (5.0) and green (6.0). Although the implants themselves are not color coded, only the implant packaging. Implants are packaged with a pre installed fixture mount and cover screw, both color coded.
